Rated Power

100W

300W

500W

Output Waveforr

Modified sine wave

Pure Sine Wave

AC Output Voltage

110V,220V

AC Output Frequency

50Hz/60Hz ± 0.5Hz

Conversion Efficiency

Maximum Value>90%

Charging interface

Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller)

AC Output Socket

Universal Socket

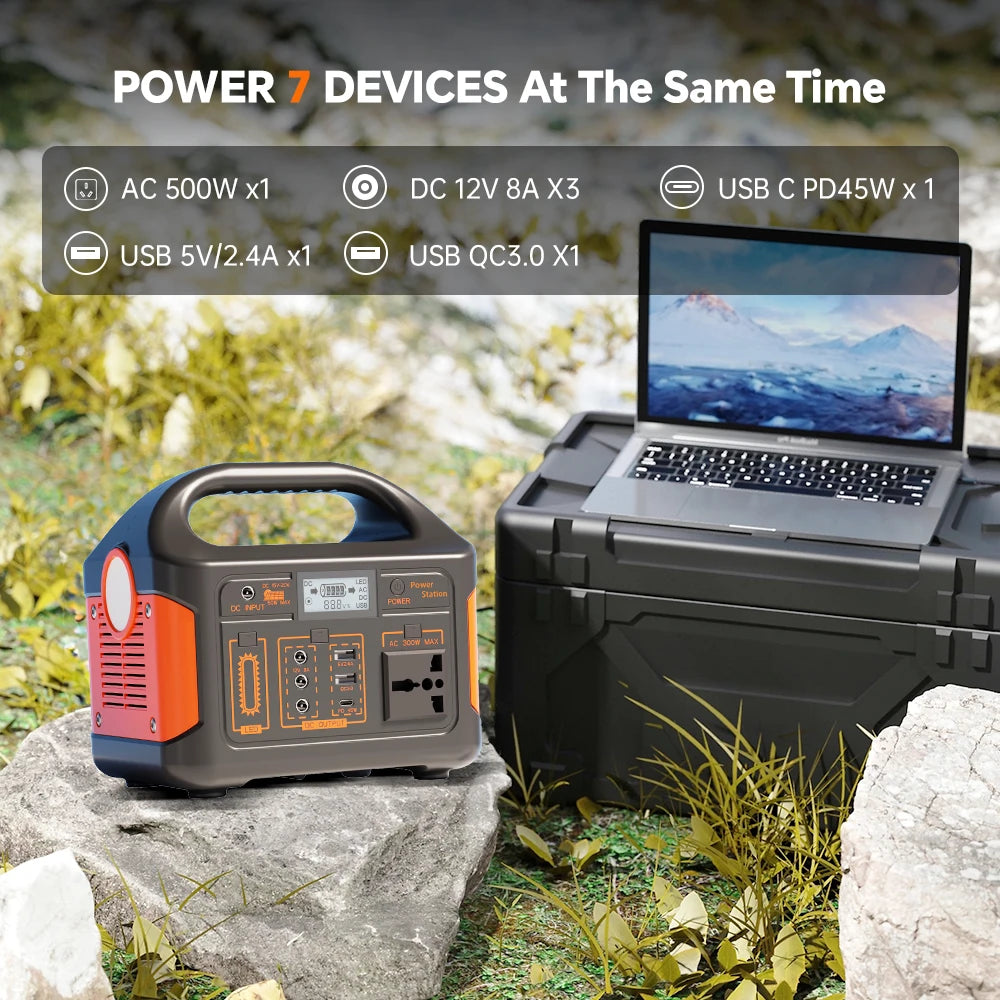

DC Output Voltage

DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521

USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port

LED Light States

LED bright, half bright, flashing,LED off 4 states

LED high beam,low beam. Bight, half Bight, fishing LED of 6 states

Battery Type

LiFePO4

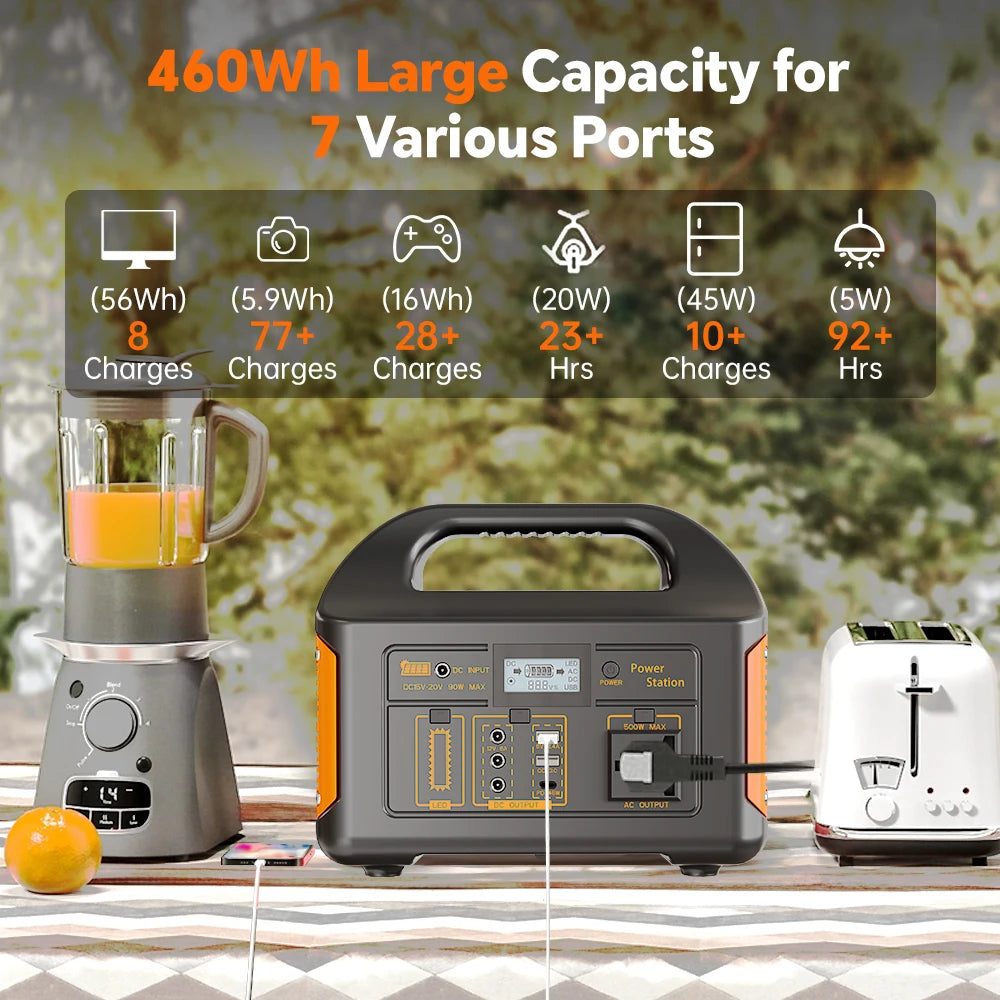

Battery Capacity

76.8Wh

230Wh

460Wh

Solar panel charging

15V-20V Max 30W

15V-20V Max 50W

15V-20V Max 90W

Charging Current

Maximum Value 2A

Maximum Value 2.5A

Maximum Value 6A

AC Charqer Specifications

5v 2A

14.6V 2A

16V 5A

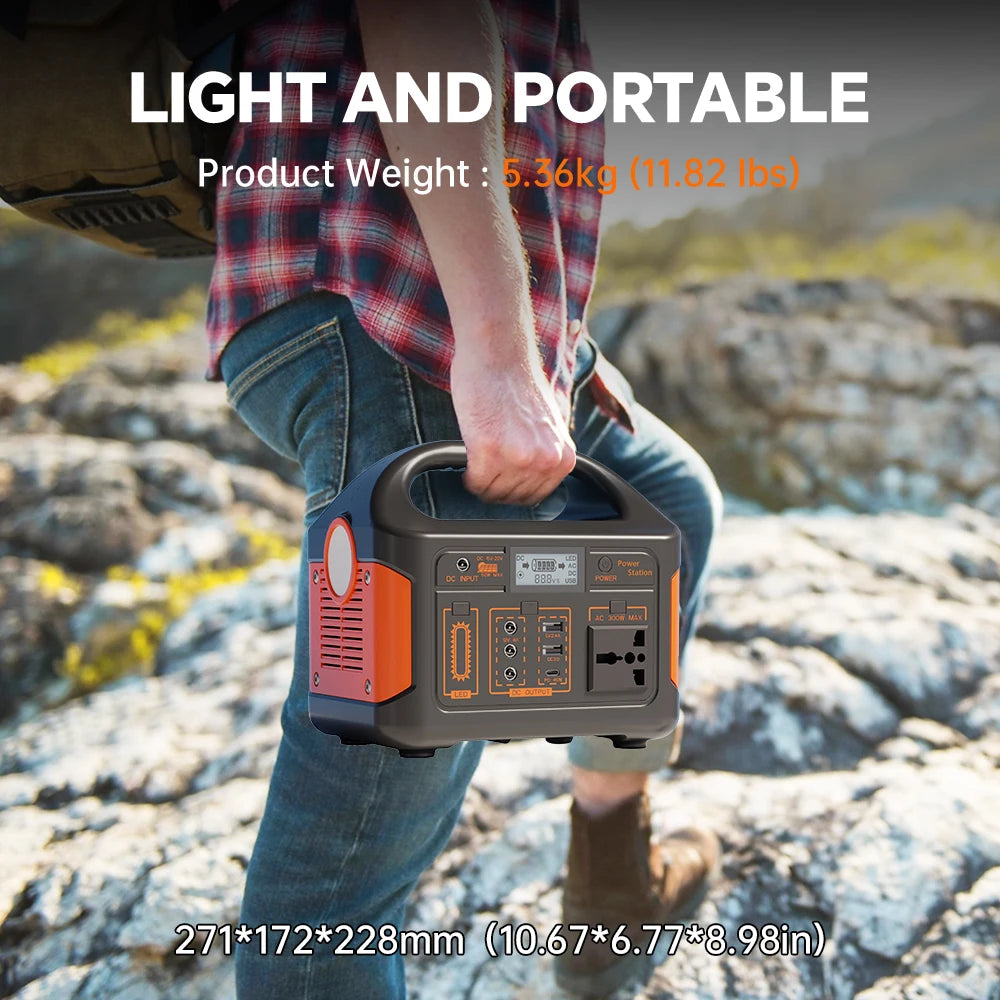

Product size (mm)

160*100*143mm

211*160*196mm

271*172*220mm

Outer packaging size (mm)

200*100*150mm

260*160*200mm

300*200*260mm

Charging Time

After full discharge,the battery capacity reaches 80% after 5 hours OT

LCD

Battery Voltage, State of Charge, State of Charge, State of Discharge

Heat Dissipation

Intelligent Temperature Control Cooling Fan

Noise

1Meter Distance <45dB

Protection Functions

Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit
